Uncured Cover Rubber

Uncured cover rubber used as cover rubber and sealing of the joint for the heating vulcanization of steel cord conveyor belt.Different thickness for uncured cover rubber, and used with uncured intermediate rubber together.
Send Inquiry
Description
Application



Uncured cover rubber used as cover rubber and sealing of the joint for the heating vulcanization of steel cord conveyor belt.Different thickness for uncured cover rubber, and used with uncured intermediate rubber together.



Production instruction:

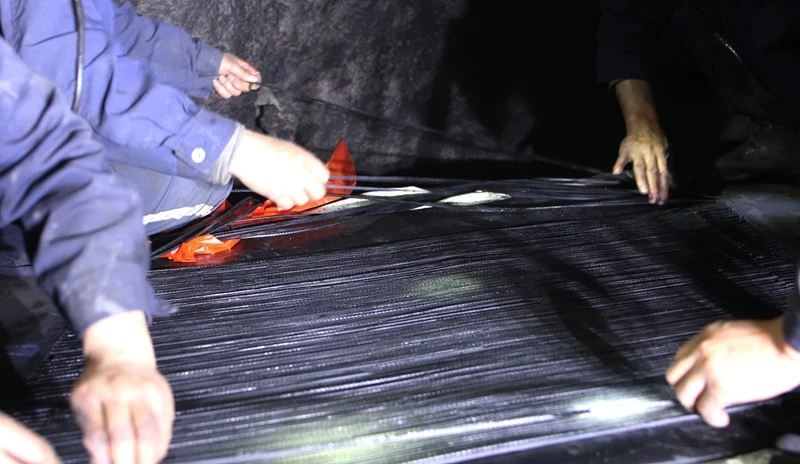

1.First strip the rubber of steel cord surface,then strip the rubber which is no need.

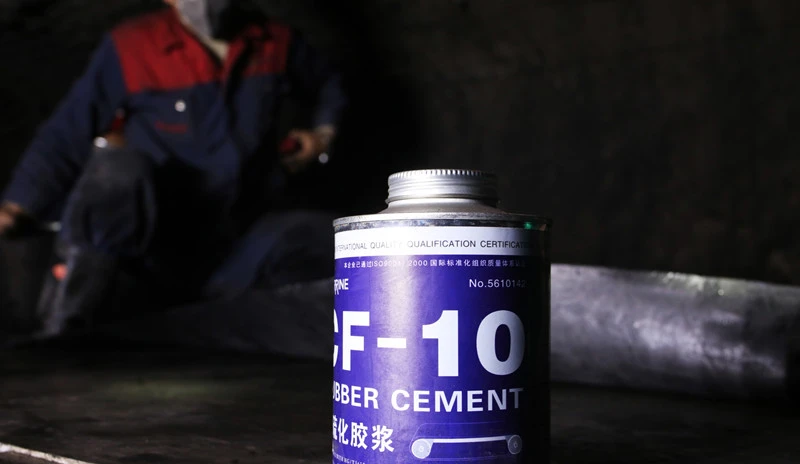

2.Brush the first layer rubber cement at the steel cord which has been polished.
3.Brush the second layer rubber cement after the first layer rubber cement dried.
4.After the second time rubber cement dried,put tie gum and uncured cover rubber at the connector of conveyor belt, then vulcanizing it.



Product details

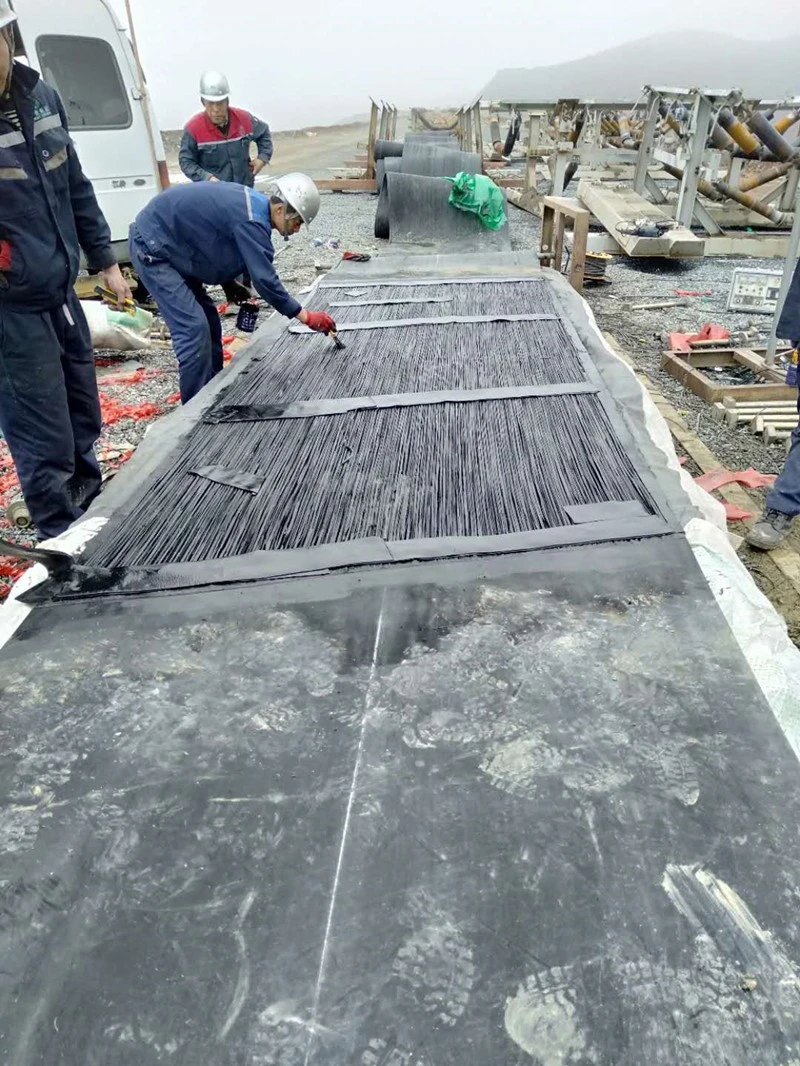

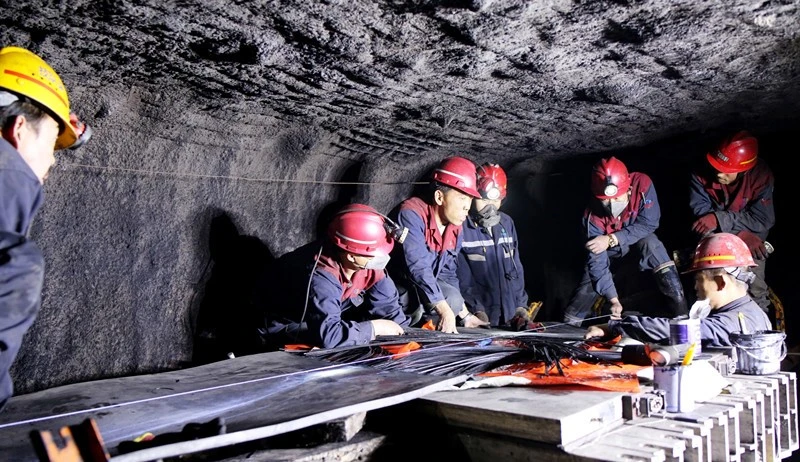

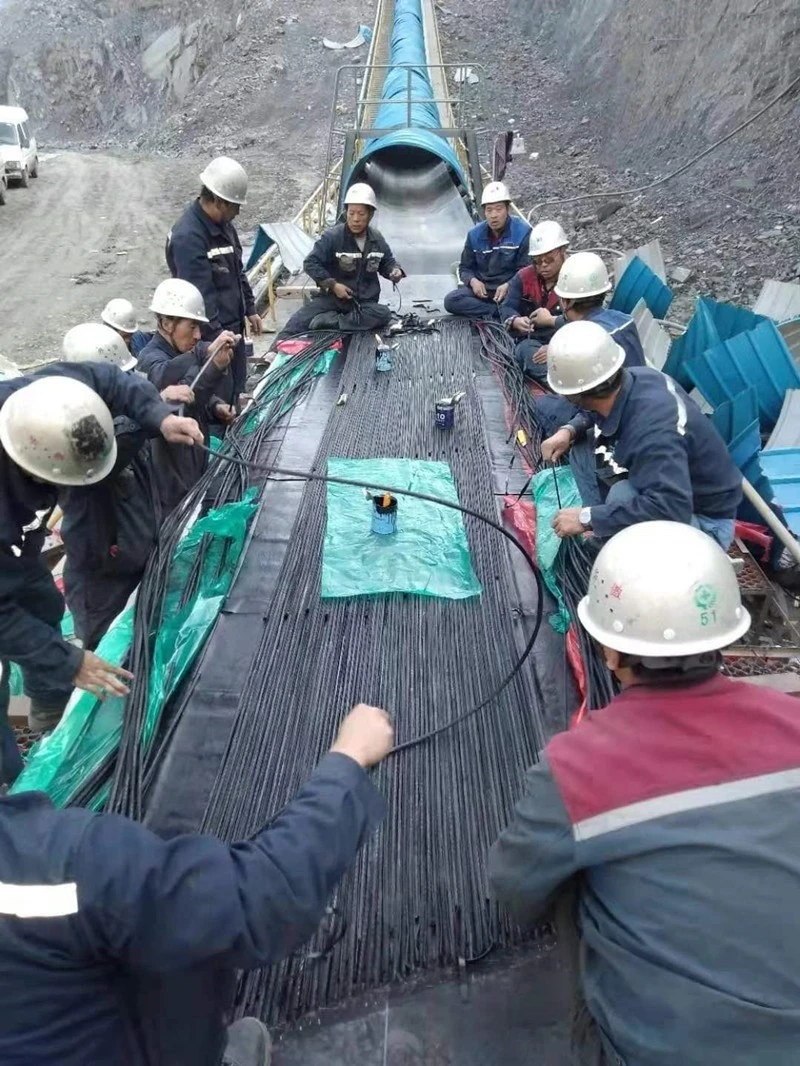

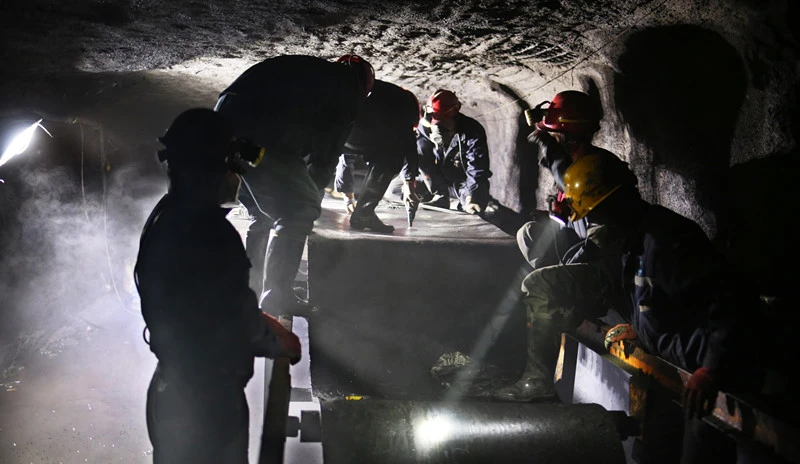

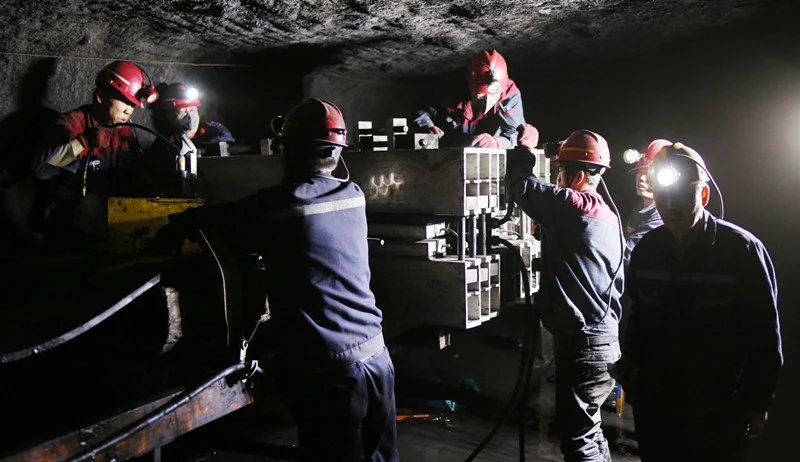

Uncured cover rubber has superb performance to be used for repair of conveyor belt, hot splicing of conveyor belt.

product-800-464
product-800-464
product-800-464
product-800-462
product-800-462
product-800-1066
product-800-1066



Notes



Expiration: 12 months
Storage temperature: below 25℃ and in dry, cool and ventilated place.



SPECIFICATION

Application

Use for conveyor belt hot vulcanized splicing

Polymer

NR

Specific Gravity

1.21g/m³

Hardness

65 shore A

Tensile Strebgth

21MPA

Elongation at Break

460%

Color

Black



Product details



Shanxi Betop is the biggest and professional factory for conveyor belt maintenance materials, We have three big workshop, one is mainly for rubber products;one is for glue products;one is for impact bed, belt cleaner and some tools.More and more clients are like to cooperate with factory directly and choose us as the business partner.



PRODUCT SIZE

Product No.

Thickness

Width

Weight/roll

5805001

1mm

500mm

10kg

5805002

2mm

500mm

10kg

5805003

3mm

500mm

10kg

5805004

4mm

500mm

10kg

5805005

5mm

500mm

10kg

5805006

6mm

500mm

10kg

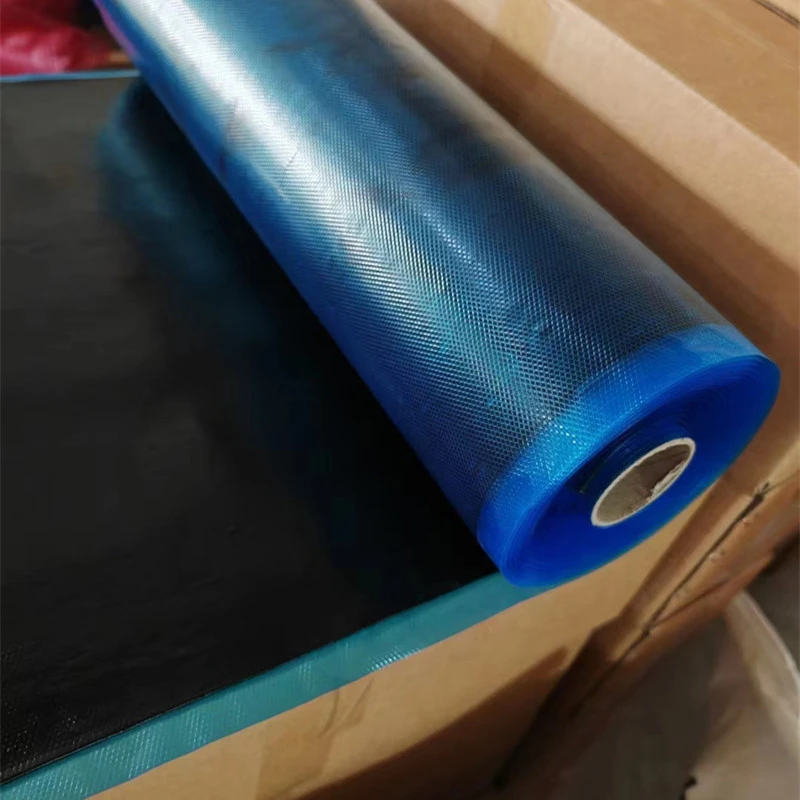

As for the plastic film color, can be blue, white, yellow, green or as as customer's requirement

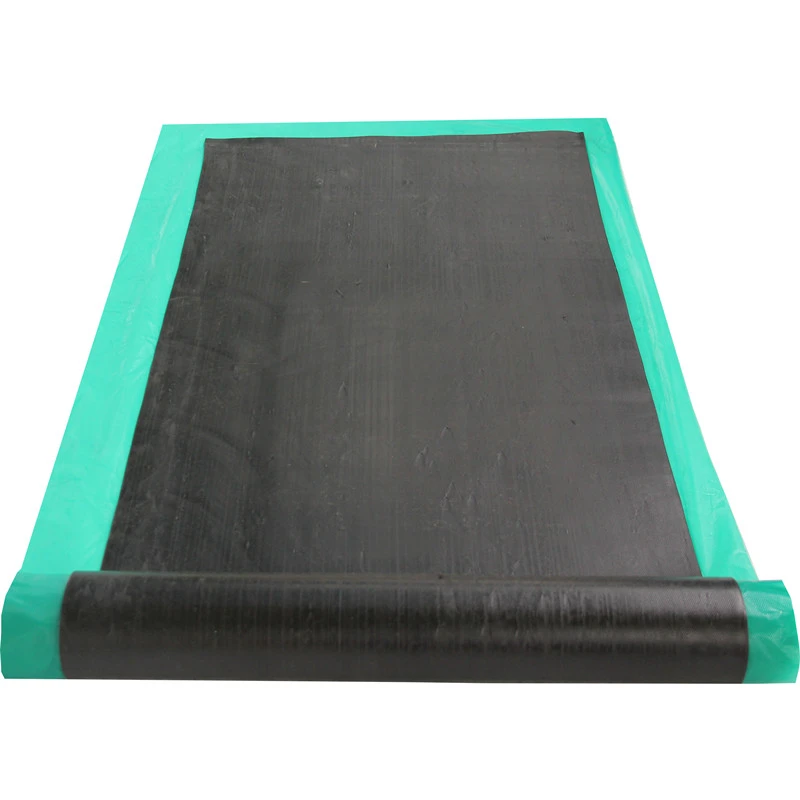

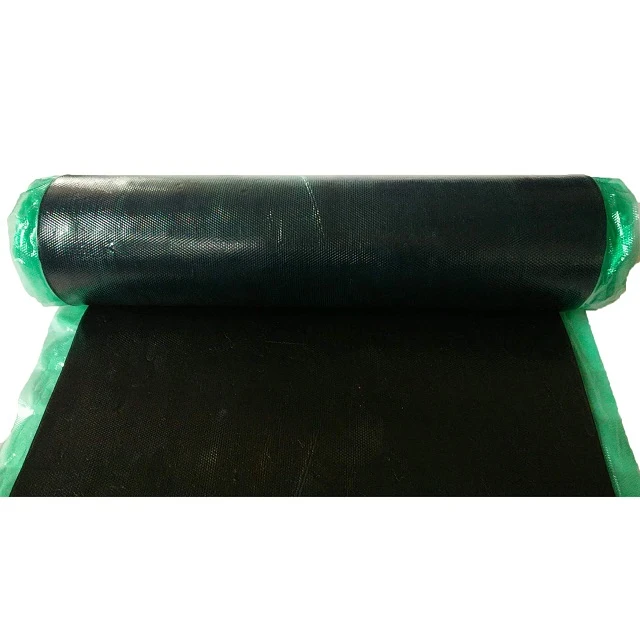

product-800-800
product-640-640
product-640-640
product-800-800

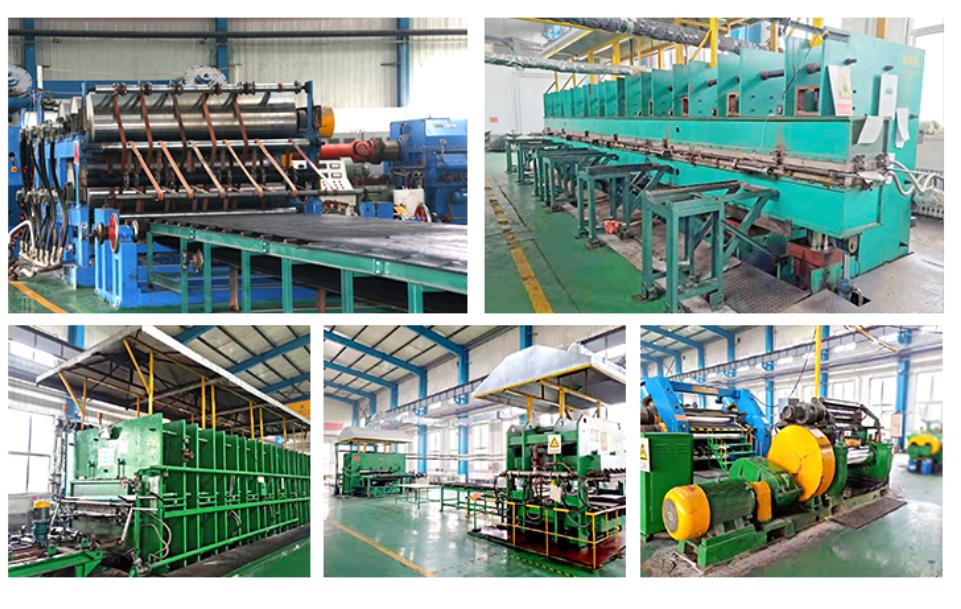

Our workshop and machine:



"Huao" brand Uncured cover rubber is known as high quality, long durability, safety, easy-application.And Uncured cover rubber produced by our advance machine, the quality is under control, package well.

product-961-609

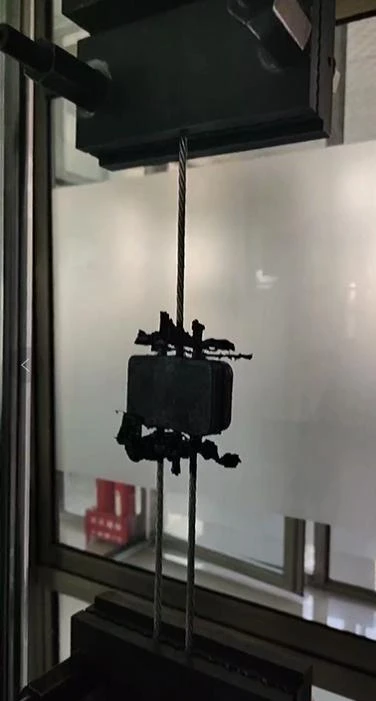

Test picture:



The company owns advanced testing instrument produced by Taiwan Gotech Testing Machines Co., Ltd. and Harbin Hapro Electrical Technology Co., Ltd., including DIN wear tester, double-station belt fatigue tester, etc.

Good equipment is the guarantee of making high quality Uncured cover rubber.

product-376-701

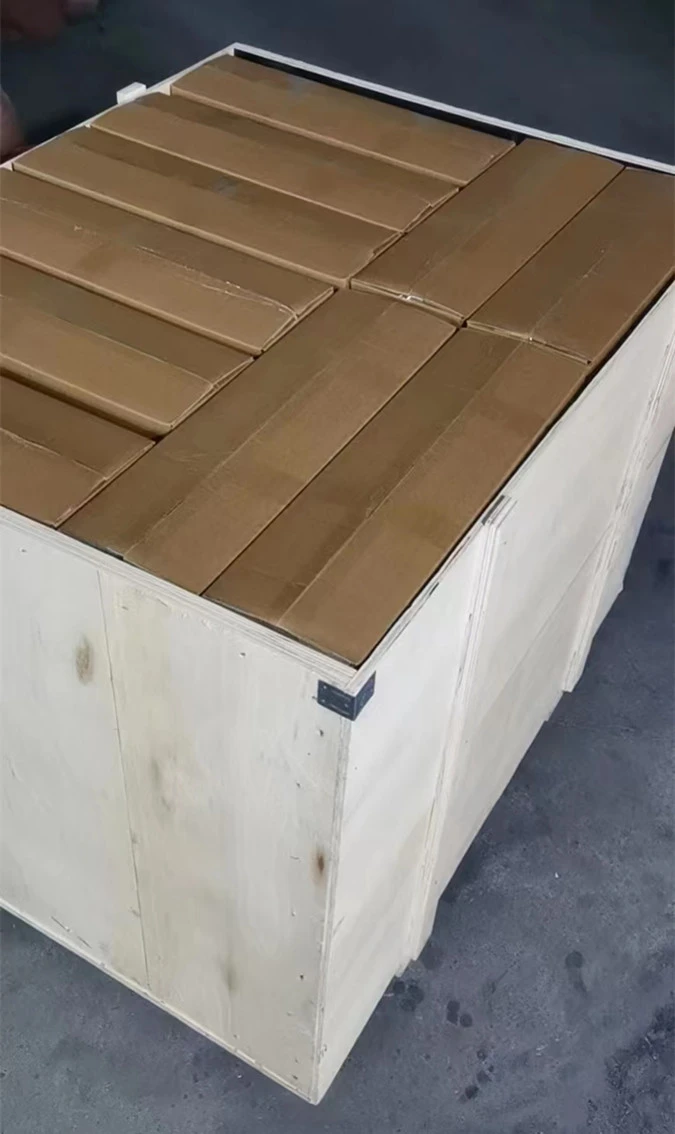

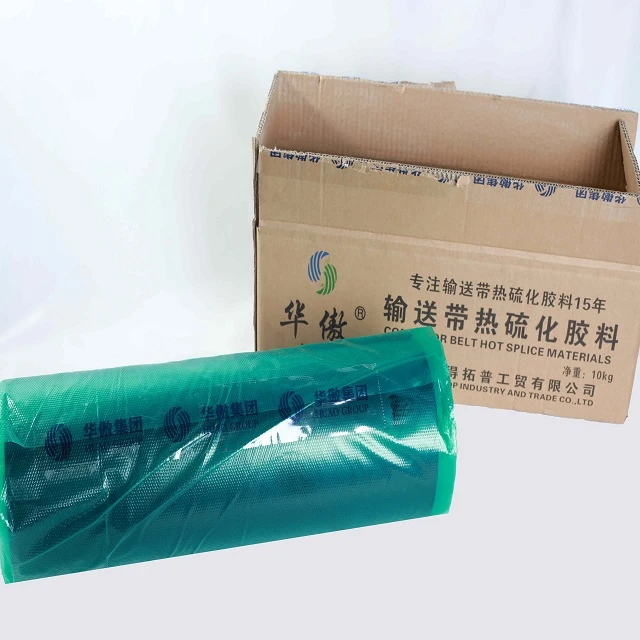

Package



PACKAGE:

UNCURED COVER RUBBER

10KG/ROLL, 1ROLL/CARTON



product-675-203

product-675-1134
