Application
Diamond pulley lagging sheet used for drive pulleys of low to medium loaded conveyor belt, reduce slippage between belt and pulley, improve and stabilize coefficient of friction, prevent the pulley against wear and corrosion, strong adhesive system with CN bonding layer. Diamond pulley lagging sheet has different thickness, width and different diamonnd shape.
Production instruction:
Product details

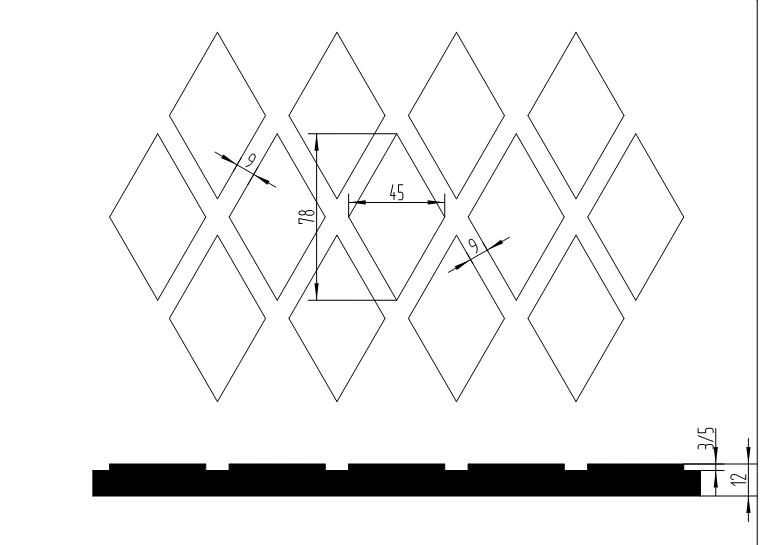

DIAMOND SHAPE SIZE: 78X45MM
|
Color |
polymer |
density |
Tensile strength |
hardness |
|
|
Fire retardant |
black |
NR/BR |
1.35 |
15MPA |
shoreA60±5 |
|
non-flammable |
black |
NR/BR |
1.32 |
8MPA |
shoreA60±5 |
We can produce according the client's requirement.
|
Product No. |
Thickness |
Width |
Length |
|
9807342 |
8mm |
1000/1200/1450/2000mm |
10m |
|
9807343 |
10mm |
1000/1200/1450/2000mm |
10m |
|
9807344 |
12mm |
1000/1200/1450/2000mm |
10m |
|
9807345 |
15mm |
1000/1200/1450/2000mm |
10m |
|
9807346 |
20mm |
1000/1200/1450/2000mm |
10m |
|
9807347 |
25mm |
1000/1200/1450/2000mm |
10m |
|
9807348 |
30mm |
1000/1200/1450/2000mm |
10m |
Notes
Main Features
1.CN bonding layer, after buffing, has the best bonding strength
2.Easy to install
3.Minimum wastage and economical price
4.Increased friction coefficient between the drum and belt
5.Shorter lead times
6.High wear resistant.
|
Spec |
|
|
Polymer |
NR/SBR |
|
Density |
1.246 |
|
Hardness (Shore A) |
60±5 |
|
Tensile strength (MPA) |
14(≥14) |
|
Elongation (%) |
640(≥400) |
|
Wear (mm3) |
178(≤200) |
|
Tearing strength (N/mm) |
51 |
|
Temp (℃) |
-40-110 |
Can be produce according the client's requirement
Exhibition and Customer visit:
Our factory attending many exhibition around the world, such as in Russia market, Chile market, Peru market, Australia market. And now more clients prefer to visit our factory and build the long term business relationship.

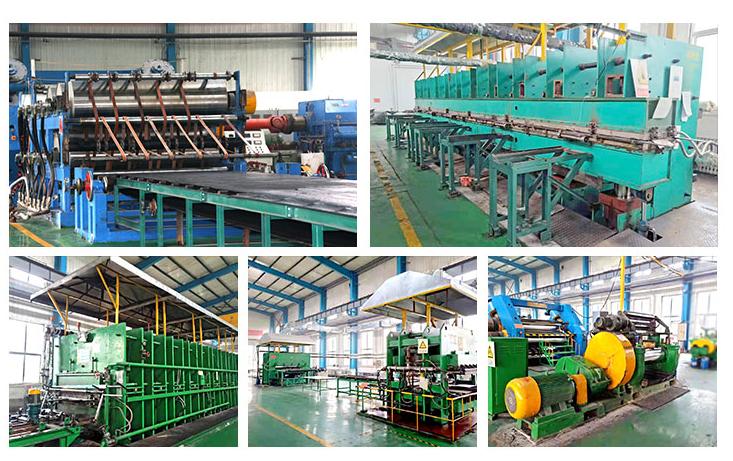

Our workshop:
Good equipment is the guarantee of making high quality Diamond pulley lagging sheet

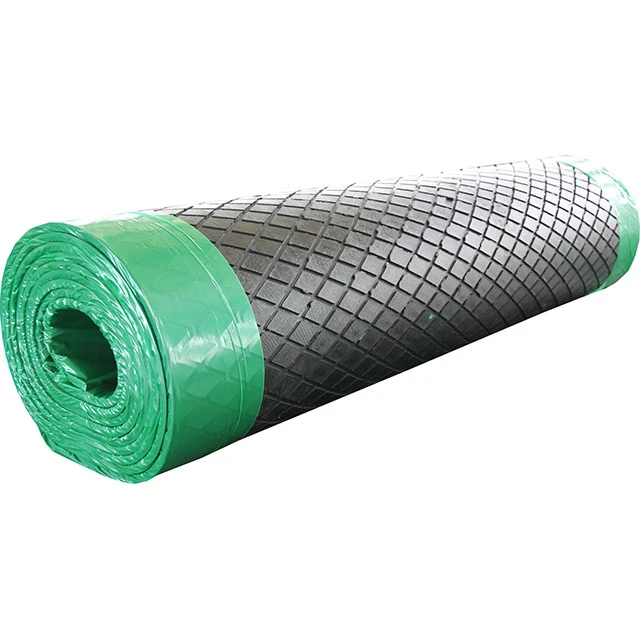

Package
|
PACKAGE: |
|
|
DIAMOND PULLEY LAGGING SHEET |
PAKCAGE BY PALLET,;5ROLLS/PALLET |
