Application
Flex-lag rubber lagging,also called diamond strip lagging used for drive pulleys of low to medium loaded conveyor belt, reduce slippage between belt and pulley, improve and stabilize coefficient of friction, prevent the pulley against wear and corrosion, strong adhesive system with CN bonding layer.
Production instruction:
PULLEY LAGGING SERVICE
Product details

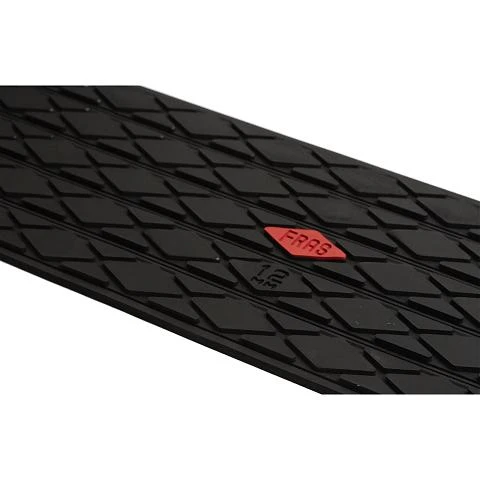

DIAMOND SHAPE SIZE
|
roduct No. |
Thickness |
Width |
Length |
|
6832501 |
10/12/15mm |
200/250/400/500mm |
6000mm |
|
6832450 |
10/12/15mm |
200/250/400/500mm |
6500mm |
|
6832451 |
10/12/15mm |
200/250/400/500mm |
10000mm |
|
6832783 |
10/12/15mm |
200/250/400/500mm |
15000mm |
|
6832258 |
10/12/15mm |
200/250/400/500mm |
20000mm |
|
6832452 |
10/12/15mm |
200/250/400/500mm |
30000mm |
Can be produce according the client's requirement
Specification
|
Spec |
|
|
Polymer |
NR/SBR |
|
Density |
1.101(1.1) |
|
Hardness (Shore A) |
60±5 |
|
Tensile strength (MPA) |
18(≥16) |
|
Elongation (%) |
748(≥450) |
|
Wear (mm3) |
145(≤160) |
|
Tearing strength (N/mm) |
65.1 |
|
Temp (℃) |
-40-110 |
Can be produce according the client's requirement,such as the tensile strength, hardness, abrasion.
Exhibition and Customer visit:
"Huao" brand diamond diamond strip lagging is known as high quality, long durability, safety, easy-application. The products have been exported to more than 50 countries and regions all over the world.
Our workshop:
Good equipment is the guarantee of making high quality diamond strip lagging

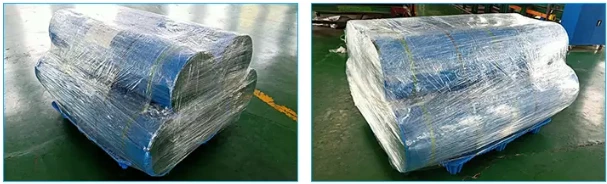

Package
|
PACKAGE: |
|
|
FLEX-LAG RUBBER LAGGING |
PAKCAGE BY PALLET;OR IN WOODEN CASE |
FAQ:
Q: Payment terms
Q: Delivery time
Q: Transportation
Q: Package Of diamond strip lagging
Q: Guarantee
Q: Manufacturer or trader
