Application
V-plough belt cleaner with excellent cleaning performance for the empty section (non-working belt surface) , suspension installation to prevent the belt and the roller.
Products Installation
The V-plough belt cleaner is installed in front of the rear reversing roller and the first 90-degree reversing roller of the vertical tension device. When installed, the plough tip of the cleaner scraper faces the running direction of the conveyor belt to scrape the debris to the conveyor On both sides.
Main Features:
1.Unique V-plow type sweeping structure
2.Easily replaceable blade design,providing 2 inch(50mm) thickness wear
3.The scraper blade height can be automatically adjusted based on the abrasion amount of the blade and the location change of conveyor belt.
Notes
Applicable belt width: 500-2000mm
Applicable belt speed: ≦5.5m/s
Customized as per customer's request.
|
Product No. |
Belt width(mm) |
B(mm) |
L(mm) |
|
9717843 |
B=600 |
600 |
730 |
|
9717844 |
B=800 |
800 |
910 |
|
9717845 |
B=1000 |
1000 |
1160 |
|
9717846 |
B=1200 |
1200 |
1410 |
|
9717847 |
B=1400 |
1400 |
1610 |
|
9717848 |
B=1600 |
1600 |
1844 |
|
9717849 |
B=1800 |
1800 |
2030 |
|
9717850 |
B=2000 |
2000 |
2270 |

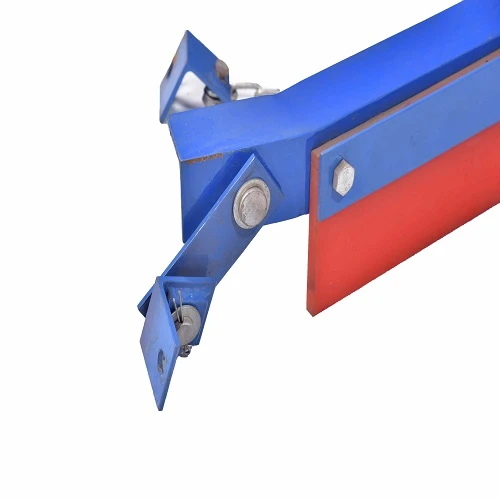

Product details
Blade used can be in 2 materials:
1.Shore A 80 degrees NBR blade
2.Shore A 90 degrees polyurethane blade
Exhibition and Customer visit:
"Huao" brand V-plough belt cleaner is known as high quality, long durability, safety, easy-application. The products have been exported to more than 50 countries and regions all over the world.

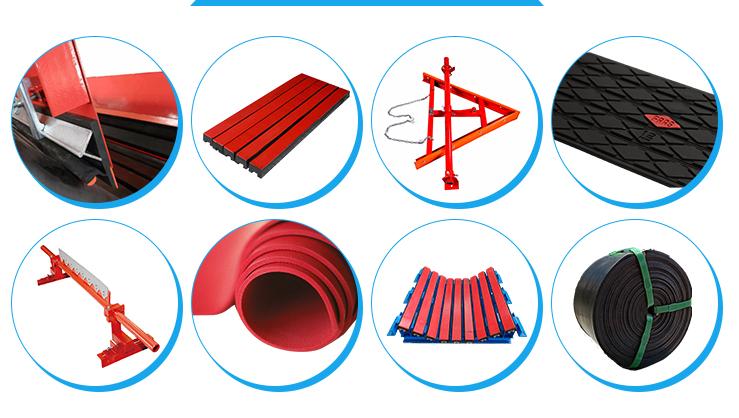

Related products:

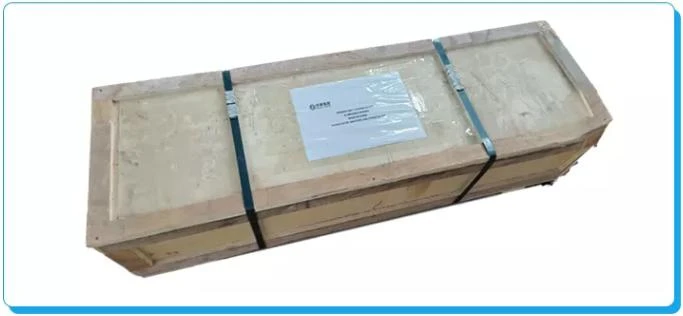

Package
|
PACKAGE: |
|
|
V-PLOUGH BELT CLEANER |
PACKAGE BY WOODEN CASE |
