Conveyor Belt Vulcanizer

Conveyor belt vulcanizer used for the heating vulcanization of joint connection and reparation of fabric ply conveyor belt, steel cord conveyor belt, PVC PVG solid woven fire-resistant conveyor belts.

Conveyor belt vulcanizer has superb performance to be used for repair of conveyor belt, hot splicing of conveyor belt.

1. Vulcanization pressure: 1.0 to 2.0 Mpa;
2. Vulcanization temperature: 145 °C ;
3. Difference in surface temperature of vulcanized plate: ± 3 degree;
4. Water cooling system (less than 10 mins to cool from 145°C to normal temperature) or natural cooling system (more than 2 hours to cool down)

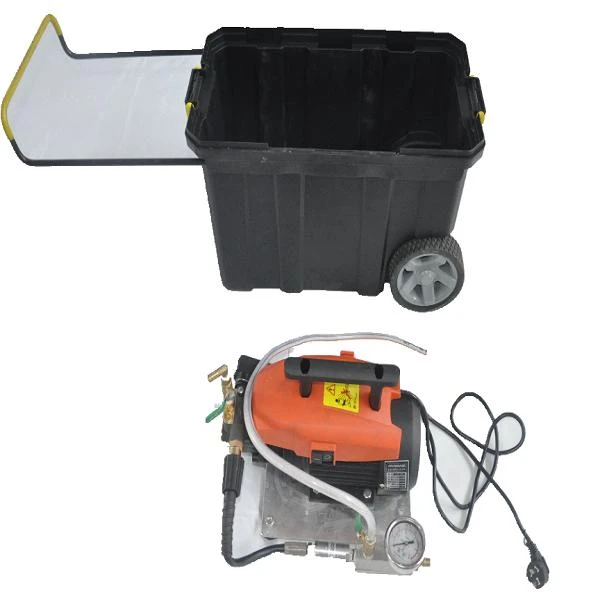

5. Electric pump or hand pump; if choose electric pump, please advise voltage, such as 380V 50HZ 3 Phases;
6. Output power of Electronic Control Cabinet ≤36 KW (Different model different power);
7. Temperature adjustment range: 0 to 200° ;
8. Timing adjustment range: 0 to 99 min;
9. After the pressurization of 0.8 MPa, the gap between upper and lower heating plate is not more than 0.4 mm

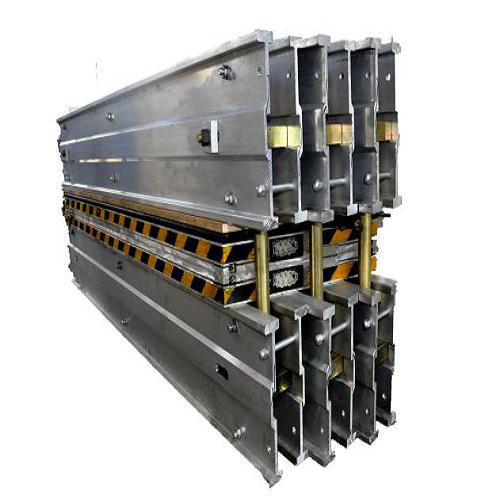

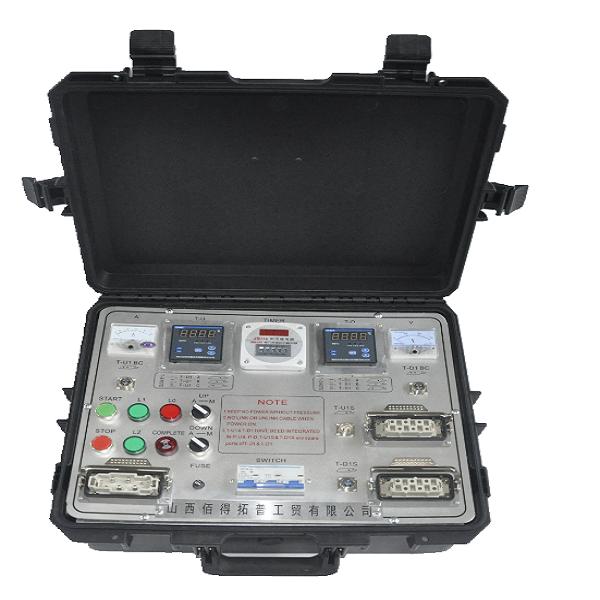

Conveyor belt vulcanizer Consists of aluminum beam, heating plate, water bag, electric cabinet and other auxiliary tools.

"Huao" brand conveyor belt vulcanizer is known as high quality, long durability, safety, easy-application. "Huao" series products include cold bond adhesives, quick repair glues, hot splicing joints tie gum, cover sheet, pulley lagging rubber sheets, sealing skirt board covering nearly all the materials necessary for conveyor belt reparation. The products have been exported to more than 50 countries and regions all over the world.
